Demystifying Qbot Malware

By Adithya Chandra · August 24, 2022
This blog was also written by Sushant Kumar Arya

Executive summary

The Trellix SecOps Team has observed an uptick in the Qbot malware infections in recent months. Qbot has been an active threat for over 14 years and continues to evolve, adopting new infection vectors to evade detection mechanisms.

At Trellix, we are committed to protecting our customers from upcoming and emerging threats on the their network, inclusive of those that are found being exploited in the wild. Trellix SecOps strives to build advanced detection features, improving product’s overall Threat Detection capabilities. Over the next few sections of this blog, we will highlight TTPs of Qbot malware, detection capabilities in Trellix products. and some detection strategies which help protect customers against this and future attacks of similar nature.

Introduction

Qbot, also known as QakBot, QuackBot and Pinkslipbot, is a common trojan malware designed to steal passwords. Over time this malware has evolved from simple infostealer malware to an infostealer with a backdoor functionality. The malware has been active since 2008 and is primarily used by financially motivated actors. Qbot actors have also served as ‘Initial Access Brokers’ to many ransomware partners including REvil/Sodinokibi. In the latest versions of Qbot Payload, we have observed significant changes in its TTPs, including new delivery vectors to evade detection mechanisms.

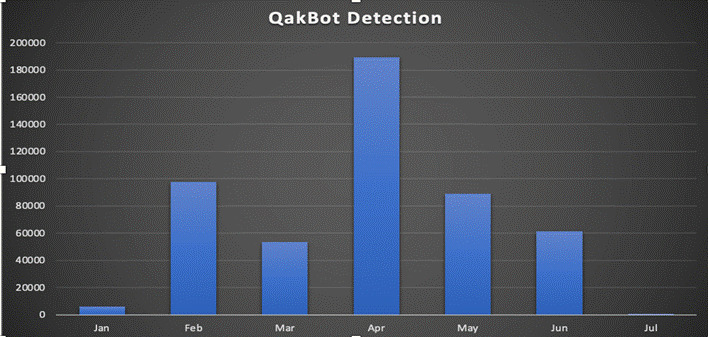

In 2022-Q1&Q2, Trellix has detected ~500K Qbot URLs in FAUDE (FireEye Advanced URL Detection Engine) with a peak of 189,313 URLs in Apr-2022.

Trellix has been studying this malware and discovered a significant uptick in the spread of Qbot malware over the first half of 2022 using several new techniques. We put together a comprehensive analysis detailing its TTPs, IOCs, Detection & Hunting Schemas and defence mechanisms from Trellix products.

Qbot threat landscape

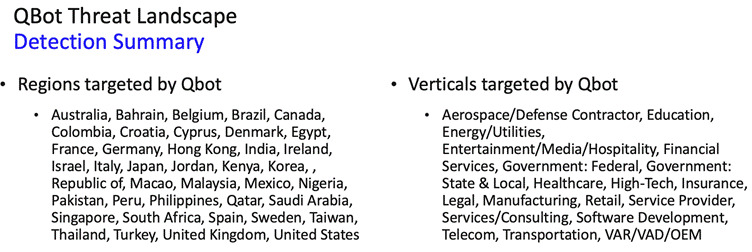

The Qbot threat landscape with reference to the geopolitical regions and industry verticals has changed from time to time and we have compiled regions and verticals targeted as shown in below section:

Infection vector: email

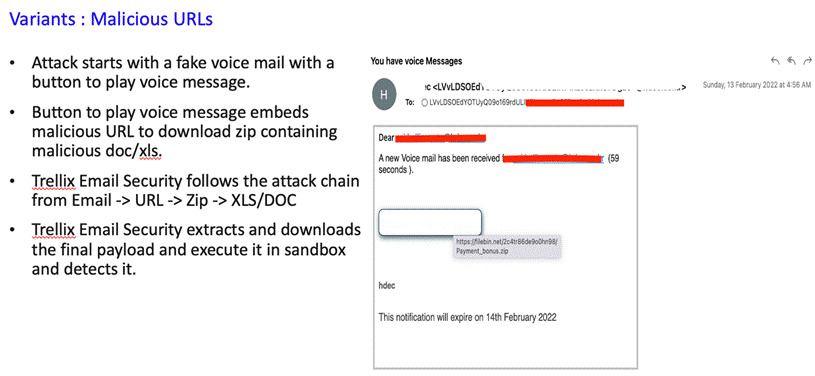

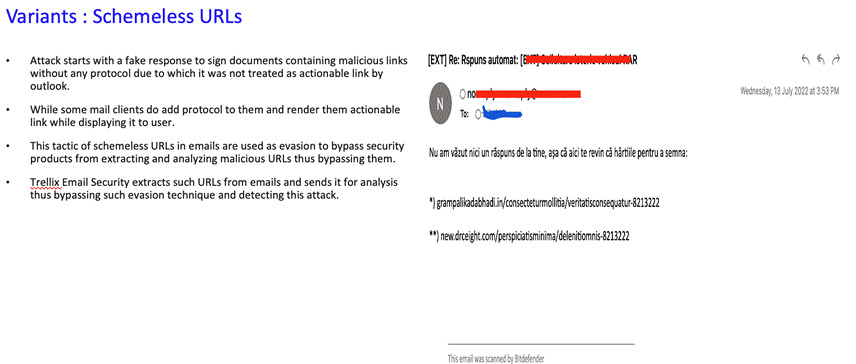

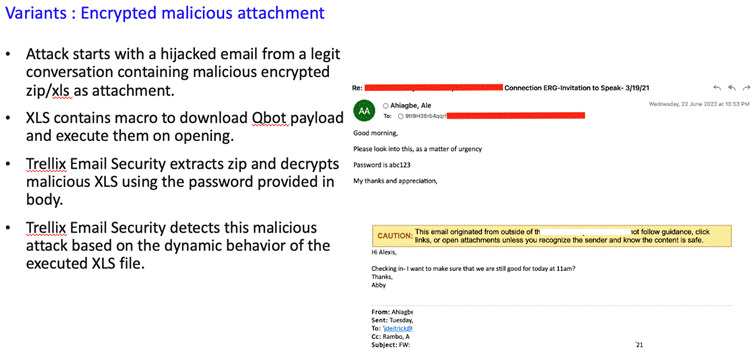

Initially Qbot was distributed by Emotet malware, but currently the major infection vector is malspam email campaigns with multiple variants. Over the next section, we discuss the prevalent variants across customers.

MITRE mappings

Attack Behaviour	Example	MITRE ATT&CK
Malicious email with an .html attachment.	Threat actor lured user to open malicious email with malicious .html attachment.	Initial Access / Phishing (T1566)
The .html file opens in a browser and uses HTML Smuggling to drop an embedded .ZIP file to the hard drive.	User manually click the HTML file from downloads directory. Process: Chrome.exe Commandline: --single-argument *.html Path:*\\User\\Downloads\\*	Defense Evasion / Obfuscated Files or Information: HTML Smuggling (T1027.006)
Password-protected zipped file which contains an .ISO image.	User unzips the password protected zip file which contain an ISO file.	Defense Evasion / Subvert Trust Controls: Mark-of-the-Web Bypass (T1553.005)
User executed malicious Windows Shortcut, which executes calc.exe from mounted ISO image.	User clicks the malicious LNK file from the ISO file. As rest of the items will be hidden, only lnk file will be visible to the user.	Execution / User Execution (T1204.002)
calc.exe loads adversary crafted WindowsCodecs DLL.	Process: Calc.exe Sysmon event id: 7 ImageLoaded: C:\Users\User\Downloads\..\WindowsCodecs.dll	Defense Evasion / Hijack Execution Flow: DLL Side-Loading (T1574.002)
Calc.exe spawns Microsoft signed binary (RegSvr32.exe) to executes Qbot dll (loader)	ParentProcess: Calc.exe Process: Regsvr32.exe	Defense Evasion / System Binary Proxy Execution (T1218)
RegSvr32.exe(Qbot loader dll) spawns and injects Explorer. (Recent versions has seen injecting to explorer.exe, wermgr.exe, msra.exe etc)	ParentProcess: Regsvr32.exe Process: Explorer.exe/ wermgr.exe	Defense Evasion / Process Injection (T1055)
Explorer creates scheduled task	ParentProcess: Explorer.exe Process:schtasks.exe	Persistence/Scheduled Task/Job: Scheduled Task
Explorer creates new registry entries	Symon event id: 13 Event Action: Registry Value Set	Defense Evasion/Modify Regsitry
Explorer connects with C2	Sysmon event id: 3 Process: Explorer.exe	System Binary Proxy Execution/ Command & Control
Explorer executes a well-known sequence of Qbot discovery commands.	Explorer.exe spawns whoami, arp, ipconfig, net view, cmd, nslookup, nltest, net share, route, netstat, net localgroup, qwinsta and other discovery activities via WMI queries.	Discovery / System Information Discovery (T1082)

Breaking down the Qbot malware

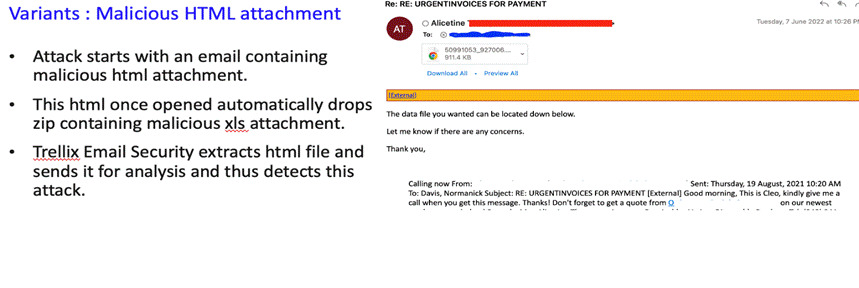

The most prevalent way Qbot infects its victims is via email. The emails used in the latest campaign carry an HTML file (TXRTN_2636021.html). The user downloads the HTML attachment and opens it in their browser which downloads a password-protected ZIP archive (TXRTN_2636021.zip) with an ISO file inside.

HTML smuggling: highly evasive malware delivery technique

(MITRE: Defense Evasion/Obfuscated Files or Information: HTML Smuggling (T1027.006))

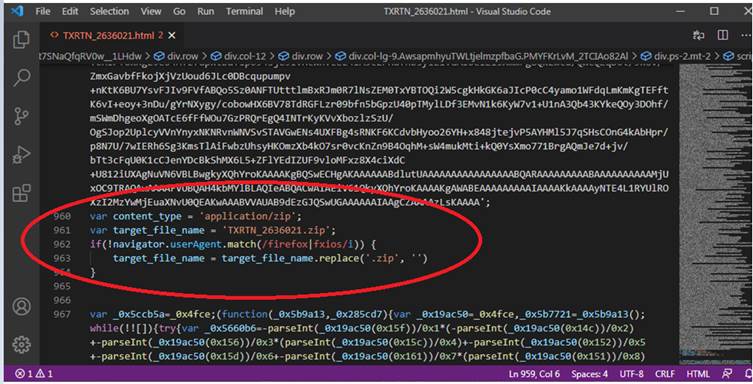

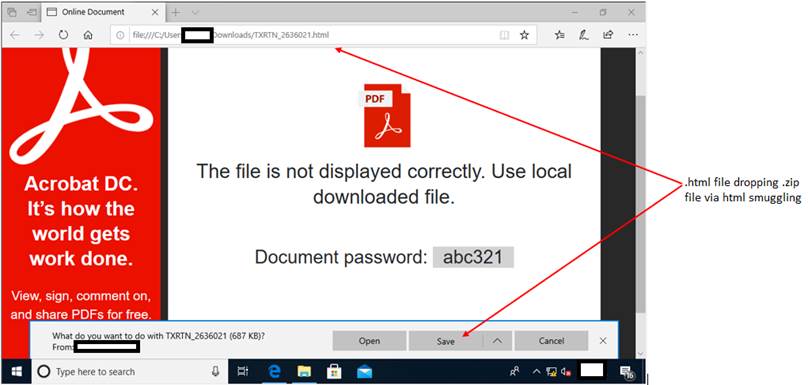

HTML smuggling is an evasive payload delivery method that helps an attacker smuggle a payload past content filters and firewalls by hiding malicious payloads inside of seemingly benign HTML files. On opening the html file in vscode/ notepad ++ we can easily see how this is being done. There is a very long base64encoded variable that is present in the javascript section of this HTML file. The javascript assembles the zip package and drops it to the device.

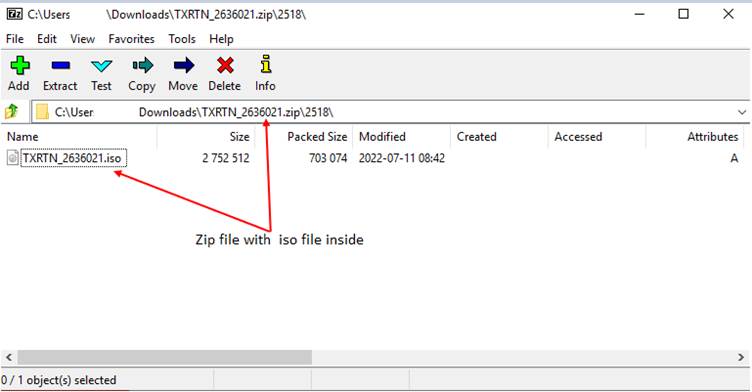

On Unzipping the ZIP file with the password shown the in html document, user gets the ISO file.

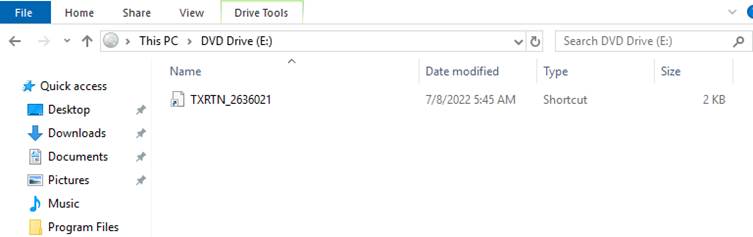

On mounting the ISO, user sees only the ‘LNK’(Shortcut) file; the rest of which are hidden.

(MITRE: Defense Evasion/Subvert Trust Controls: Mark-of-the-Web Bypass (T1553.005))

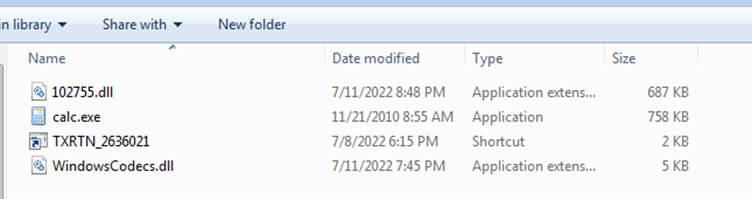

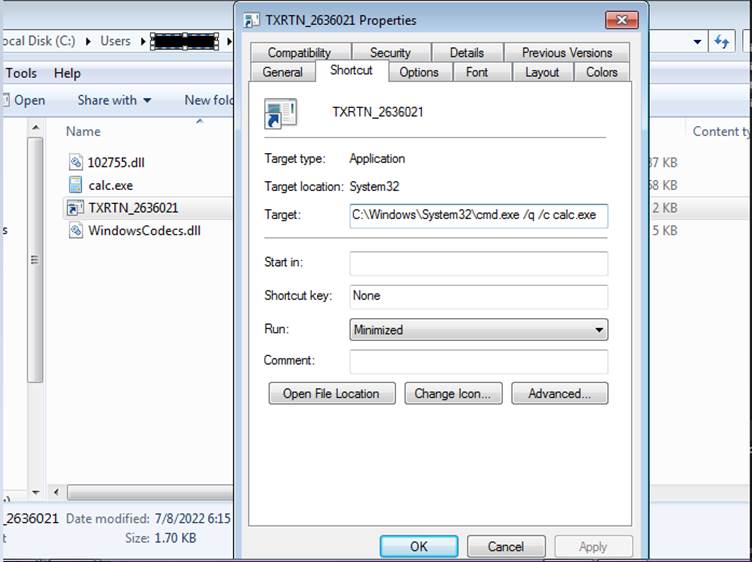

On unpacking this ISO, there are 4 files inside of it as shown below. The ISO contains a .LNK file(shortcut), calc.exe (Windows Calculator), and two DLL files, namely WindowsCodecs.dll and Qbot payload named 102755.dll

The user clicking the shortcut file triggers the Qbot malware infection by executing the ‘calc.exe’ through the Command Prompt.

Why a Windows 7 calculator?

DLL Sideloading:

(MITRE: Defense Evasion/Hijack Execution Flow: DLL Side-Loading (T1574.002))

Windows allows applications to load DLLs at runtime. Applications can specify the location of DLLs to load by specifying a full path, using DLL redirection, or by using an application manifest. If none of these methods are used, it attempts to locate the DLL by searching a predefined set of directories in a set order.

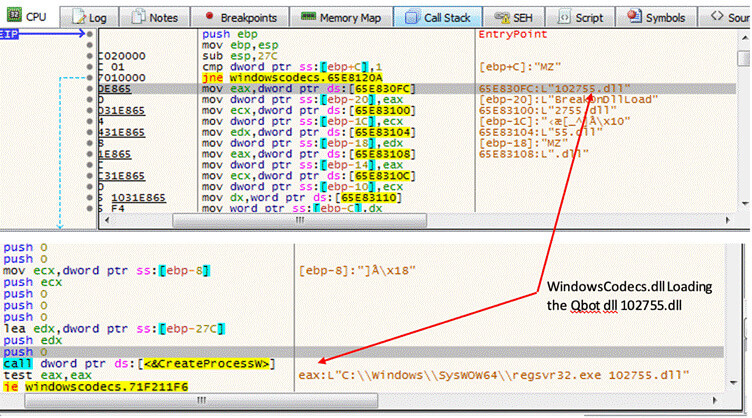

When the shortcut loads, the Windows 7 Calculator, it automatically searches for and attempts to load the legitimate WindowsCodecs DLL file. However, it does not check for the DLL in certain hard coded paths and will load any DLL file with the same name if placed in the same folder as the Calc.exe executable.

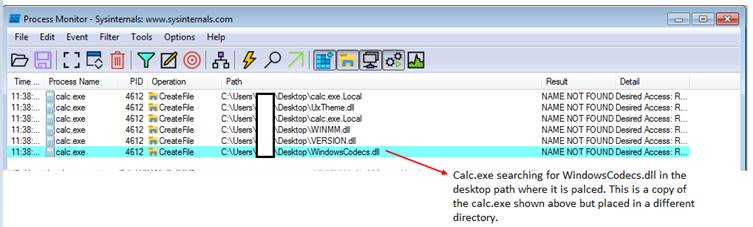

In the below snip, you can see that Calc.exe was placed in the desktop path and executed. Once it starts execution, it searches and loads WindowsCodecs DLL. However, the DLL was not present in the desktop path, hence it shows in ‘Result’ tab as “NAME NOT FOUND”.

This doesn’t work anymore with the Windows 10 version of the calculator application. Hence the threat actors behind Qbot, bundled Windows 7 calc.exe along with this.

Now What?

The attacker takes advantage of this flaw by creating their own malicious WindowsCodecs.dll file that launches the other dll file, which is nothing but the QuakBot malware(loader module). Thus, by launching Qbot through a trusted program like the Windows Calculator, attackers can easily fool security analysts and some security software.

How is it so stealthy?

The bundled calculator app is a legit benign Windows 7 calculator. But with the aforementioned flaw, the calculator loads the ‘windowscodecs.dll’ from the same directory, which is specifically crafted by the adversary. On executing the calculator, it loads windowscodecs.dll which in turn loads the Qbot loader payload via regsvr32.

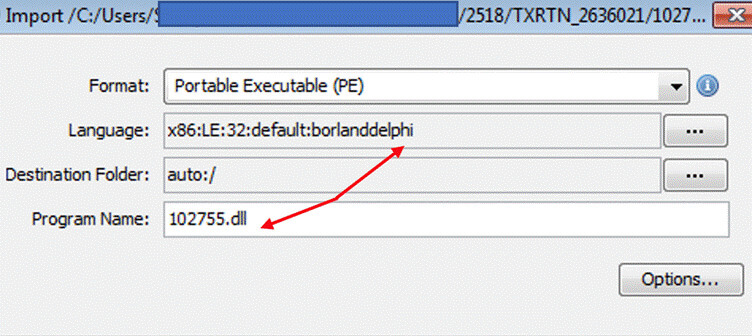

This Qbot loader DLL is a x32 bit Delphi compiled binary, with no export functions.

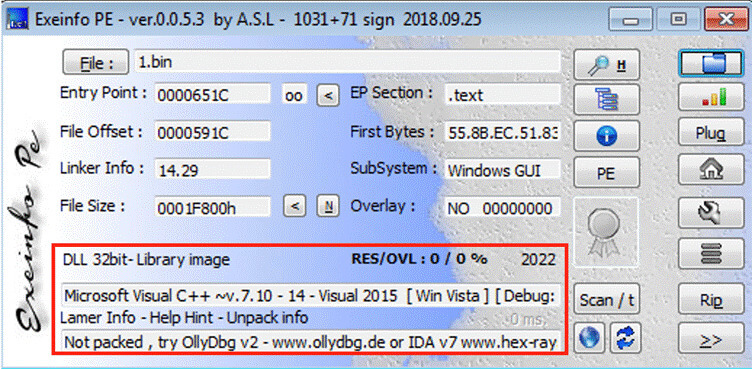

But as it is executed and gets unpacked, the core Qbot payload is a VC (C/C++) compiled binary (DLL) with export functions.

On analyzing this core module further, it does the same checks as seen in previous versions of Qbot payloads.

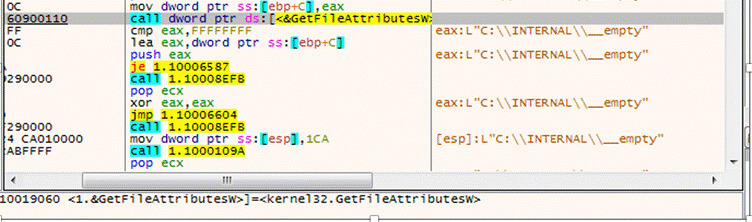

Below shows the malware payload checking for Windows Defender Emulation using WinAPI GetFileAttributes “C:\INTERNAL\__empty”.

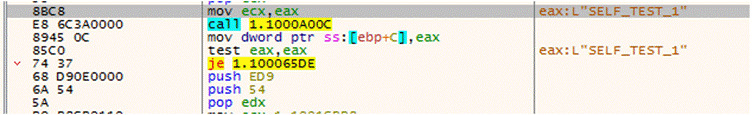

The payload also uses flag SELF_TEST_1 which appears to be for self-debugging purposes to check if the machine is infected or not.

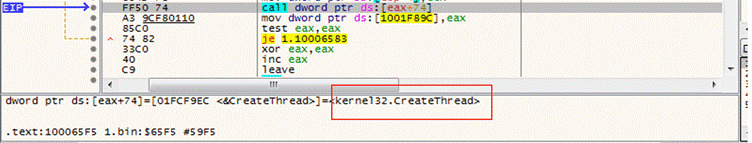

After the self-check debugging test, the malware creates a new thread and starts its execution.

Later, this payload module loads/imports DLLs, enumerating the system process along with anti-debug checks and leading the payload to inject to explorer.exe/wermgr.exe via process hollowing.

How does it gain persistence?

As Qbot has evolved, it continues to rely on the use of scheduled tasks and registry keys/runkeys for its persistence with variations on its implementation.

As the core payload gets executed, the Qbot gains its persistence via 3 steps:

1. Copying itself to below mentioned folder:
   %AppData%\Roaming\Microsoft\{RandomStrings}
2. Creating a registry value pointing to the above payload
3. Scheduled task to launch the loader 102755.dll

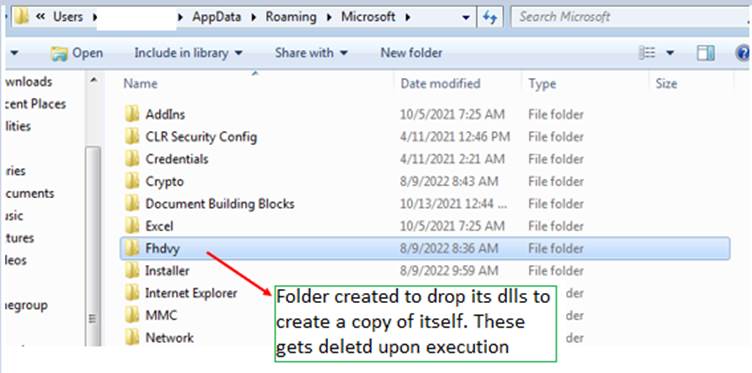

Folder Creations:

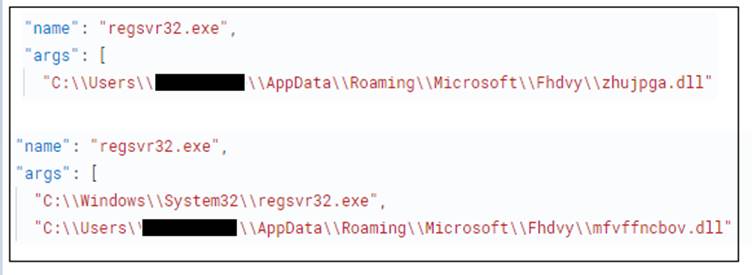

Dropped DLLs are loaded via regsvr32.exe as shown in below:

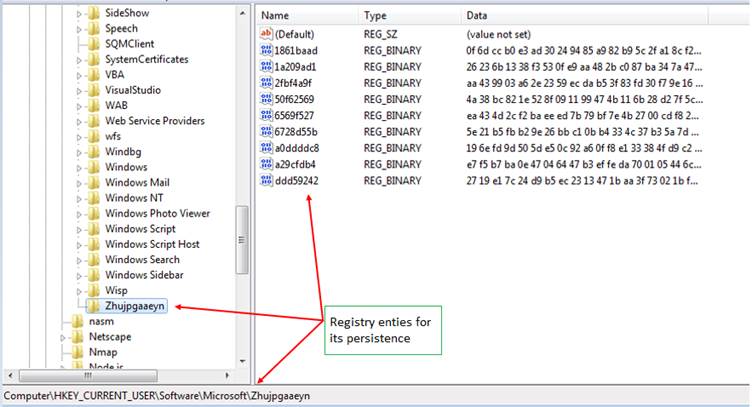

Registry entries:

(MITRE: Persistence/Defense Evasion/Modify Regsitry)

In the latest payload versions, Qbot has moved from creating its config file in “.dat” format. Now, it writes its cloned dDLL entry in the victim host along with its botnet/campaign ID as encrypted registry keys to the ‘HKCU\Software\Microsoft\’ Hive.

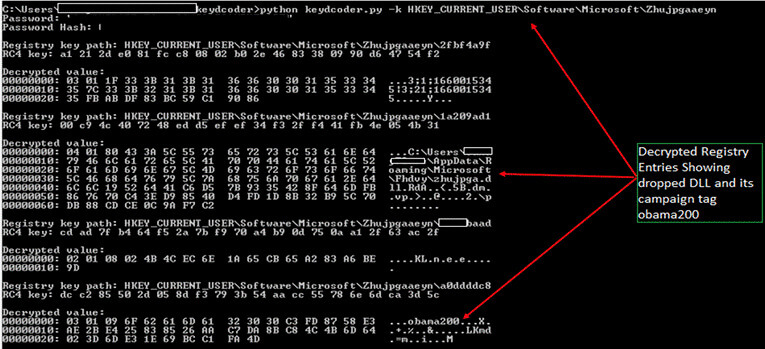

Registry entries are encrypted using system dependant password hash, config IDs, etc., which upon decrypting reveals the BotID/Campaign ID, time of the infection, DLL loader path, etc.

Scheduled task persistence:

(MITRE: Persistence/Scheduled Task/Job: Scheduled Task)

One of the most significant ways payload versions of Qbot differ are their creation of Scheduled Tasks for persistence. Recent Qbot payloads have been seen using random generated task names during its creations.

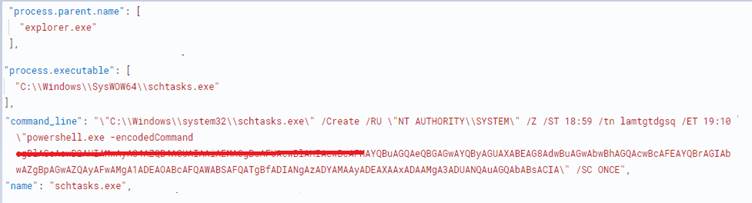

The injected Explorer.exe creates scheduled task leveraging schtasks.exe

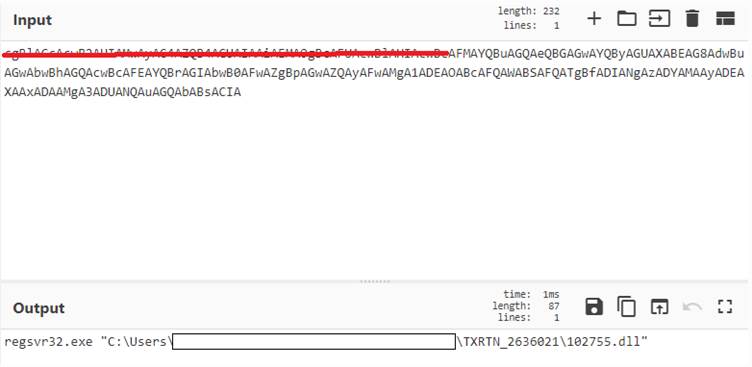

Above command is base64decoded and can be decoded which results in below figure:

Calling home: C2 communications

(MITRE: System Binary Proxy Execution/Command & Control)

Once it executes and successfully infects the victim, it calls home. It pings each of the IPs from its hardcoded C2 list. As the IP responds, it sends the POST request with the victim fingerprinting data.

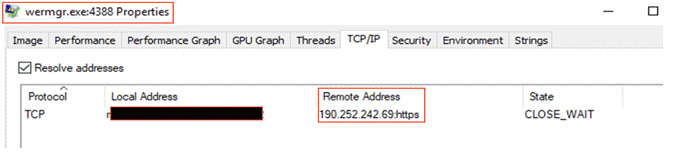

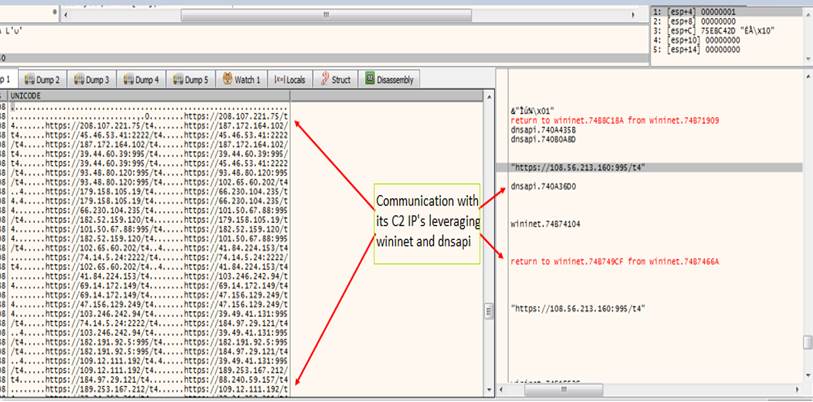

The injected process (explorer.exe/ wermgr.exe), pings every one of its IP in the C2 lists leveraging wininet, dnsapi and sleep function. Sleep function is set so the requests to IPs aren’t creating bottlenecks in communication.

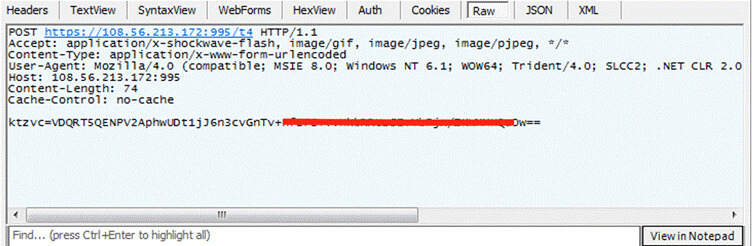

To those C2s which responds back to ping requests, the Qbot sends POST requests which consists of victim fingerprinting details as seen below:

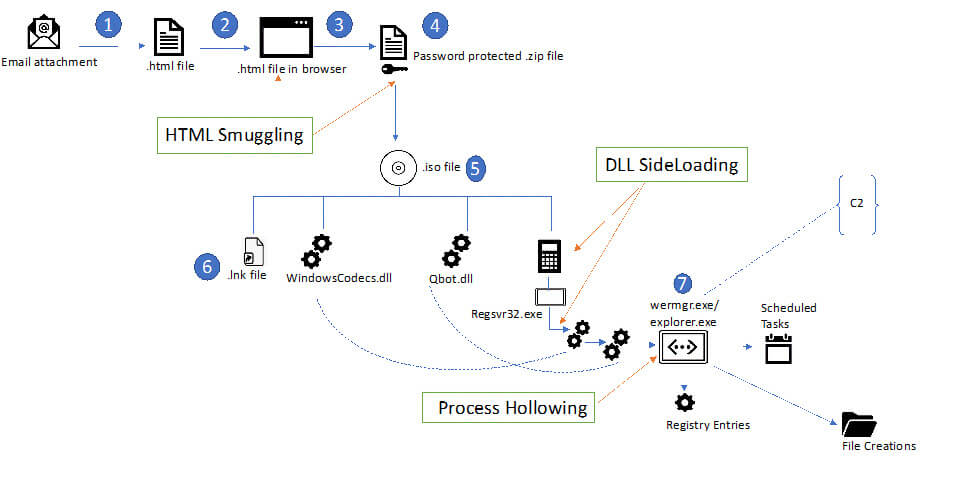

Attack flow

Appendix

Detection opportunities

The following sections provide the specific Trellix Products detections, along with custom sigma rules and IOCs to help surface Qbot and related threats.

Trellix Products	Detection Signatures
Trellix Network Security Trellix VX Trellix Cloud MVX Trellix File Protect Trellix Malware Analysis Trellix SmartVision Trellix Email Security Trellix Detection as Service	Static: FE_Trojan_HTM_Phish_209 FE_Trojan_HTML_Phish_347 FEC_Dropper_HTML_Generic_11 FEC_Dropper_HTML_Generic_13 FE_Loader_Win32_Generic_340 FE_Loader_Win32_Generic_499 Dynamic: Suspicious Codeinjection on System Processes Suspicious Process Schtask Activity Suspicious Dllloaded Regsvr on Dropped Dll Suspicious Codeinjection on Known Benign File Location Suspicious Codeinjection Activity Suspicious File Dropped Dll Executed Malicious Trojan Indicator Malicious Dropper Indicator
Trellix Endpoint Security (HX)	Trojan.GenericKD.49349603 Trojan.GenericKD.50615557 Trojan.GenericKD.50616470 Generic.mg.491e9489c9e11f8b POSSIBLE INJECTED EXPLORER (METHODOLOGY) QAKBOT G (FAMILY)
Trellix Helix	WINDOWS METHODOLOGY [Suspicious ISO mounts] WINDOWS METHODOLOGY [Suspicious Scheduled tasks] WINDOWS METHODOLOGY [Regsvr32 -Suspicious child process] MALWARE METHODOLOGY [QBot CALC Behaviour]



Helix hunting queries

metaclass:windows ((class=ms_defender category:`advancedhunting-devicefileevents`
action:`filecreated`) OR (source:`microsoft-windows-sysmon` eventid=11))
filename:[`*.html`,`*.zip`,`*.iso`,`*.lnk`] filename:/TXRTN_[0-9]{7}/ ?

OR

metaclass:windows ((class=ms_defender category:`advancedhunting-devicefileevents`) OR
(source:`microsoft-windows-sysmon` eventid=[11,23,26]) OR (source:`microsoft-windows-security-
auditing` eventid=4663 category:`file system`) filename:[`*.html`,`*.zip`,`*.iso`,`*.lnk`]
filename:/TXRTN_[0-9]{7}/ ?

Custom Sigma rules:

title: suspicious DLL SideLoading by calc
status: Experimental
description: Detects the DLL-Sideloading of windowscodecs.dll by calc.exe.
date: 04/08/2022
logsource:
   product: windows
   category: image_load
detection:
   selection:
     - ImageLoaded|endswith:
       - '\WindowsCodecs.dll'
     - Image|endswith:
       - 'calc.exe'
   filter:
     - Imageloaded|startswith:
       - 'C:\Windows\System32\'
       - 'C:\Windows\Syswow64\'
   condition: selection and not filter
falsepositives:
   - Unknown
level: high
tags:
   - DLL Side-Loading
   - T1574.002



=======



title: Suspicious calc child process
status: Experimental
description: Detects the suspicious child process of calc
date: 04/08/2022
logsource:
   category: process_creation
   product: windows
detection:
   selection:
     ParentImage|endswith:
       - '\\calc.exe'
     Image|endswith:
       - '\\regsvr32.exe'
   condition: all of them
falsepositives:
   - Unknown
level: high
tags:
   - SystemBinary Proxy Execution
   - T1218.010



=======



title: Suspicious process injection to explorer
status: Experimental
description: Detects the suspicious regsvr32 child process
date: 04/08/2022
logsource:
   category: process_creation
   product: windows
detection:
   selection:
     ParentImage|endswith:
       - '\\regsvr32.exe'
     Image|endswith:
       - '\\Explorer.exe'
   condition: all of them
falsepositives:
   - Uknown
level: high
tags:
   - SystemBinary Proxy Execution
   - T1218.010



=======



title: Suspicious commands arguments from Explorer
status: Experimental
description: Detects the suspicious commandlines from explorer
date: 04/08/2022
logsource:
   category: process_creation
   product: windows
detection:
   selection:
       ParentImage|endswith:
       - '\\Explorer.exe'
     commandLine|contains:
       - 'whoami /all'
       - 'arp -a'
       - 'ipconfig /all'
       - 'net view /all'
       - 'cmd /c set'
       - 'nslookup -querytype=ALL -timeout=10 _ldap._tcp.dc._msdcs'
       - 'nltest /domain_trusts /all_trusts'
       - 'net share'
       - 'netstat -nao'
       - 'net localgroup'
       - 'qwinsta'
     condition: all of them
falsepositives:
   - Uknown
level: high
tags:
   - System Information Discovery
   - T1082



=======



title: Suspicious commands arguments from Wermgr.exe
status: Experimental
description: Detects the suspicious commandlines from wermgr.exe
date: 04/08/2022
logsource:
   category: process_creation
   product: windows
detection:
   selection:
     ParentImage|endswith:
       - '\\Wermgr.exe'
     commandLine|contains:
       - 'whoami /all'
       - 'arp -a'
       - 'ipconfig /all'
       - 'net view /all'
       - 'cmd /c set'
       - 'nslookup -querytype=ALL -timeout=10 _ldap._tcp.dc._msdcs'
       - 'nltest /domain_trusts /all_trusts'
       - 'net share'
       - 'netstat -nao'
       - 'net localgroup'
       - 'qwinsta'
   condition: all of them
falsepositives:
   - Uknown
level: high
tags:
   - System Information Discovery
   - T1082



=====



title: Explorer Initiated a network Connection
status: experimental
description: |
   Adversaries may abuse explorer.exe to proxy execution of malicious payloads and connect with C2.
references:
date: 04/08/2022
logsource:
     category: network_connection
     product: windows
detection:
     selection:
       Initiated: 'true'
       Image|endswith: '\explorer.exe'
     condition: selection
falsepositives:
     - Legitimate explorer.exe connections over networks
level: medium
tags:
     - Defense Evasion
     - T1218.007



=====



title: WerMgr Initiated a Network Connection
status: experimental
description: |
   Adversaries may abuse wermgr.exe to proxy execution of malicious payloads and connect with C2.
references:
date: 04/08/2022
logsource:
     category: network_connection
     product: windows
detection:
     selection:
       Initiated: 'true'
       Image|endswith: '\wermgr.exe'
     condition: selection
falsepositives:
     - Legitimate wermgr.exe connections over networks
level: medium
tags:
     - Defense Evasion
     - T1218.007

IOCs:

Files

FileName: TXRTN_2636021.html
Hash:5cb20a0bfc5e3e2ae8398b1840adf7ae

— —

FileName:TXRTN_2636021.iso
Hash:17be394b5cd6d74c3709e39f02cd1aa3

— —

FileName: WindowsCodecs.dll
Hash:491e9489c9e11f8b9d3d77239559a194

— —

FileName: 102755.dll
Hash:217f7ddedf40dbe456ce13bf01bd74fc

— —

FileName: zhujpga.dll/ mfvffncbov.dll (cloned dll’s)
Hash:217f7ddedf40dbe456ce13bf01bd74fc

Network communications

http://94.59.15.56:2222
http://94.59.15.204:2222
http://94.59.15.166:2222
http://94.36.193.62:2222
http://94.36.193.38:2222
http://94.36.193.154:2222
http://93.48.80.99:995
http://93.48.80.92:995
http://93.48.80.238:995
http://92.132.132.196:2222
http://92.132.132.160:2222
http://92.132.132.112:2222
http://89.211.209.7:2222
http://89.211.209.252:2222
http://89.211.209.156:2222
http://86.97.246.37:1194
http://86.97.246.230:1194
http://86.97.246.217:2222
http://86.97.246.171:1194
http://86.97.246.157:1194
http://86.97.246.143:2222
http://86.97.246.133:2222
http://86.213.75.210:2078
http://86.213.75.17:2078
http://86.213.75.13:2078
http://84.241.8.223:32103
http://84.241.8.203:32103
http://84.241.8.149:32103
http://84.241.8.131:32103
http://81.158.239.89:2078
http://81.158.239.219:2078
http://81.158.239.163:2078
http://81.158.239.10:2078
http://80.11.74.71:2222
http://80.11.74.238:2222
http://80.11.74.179:2222
http://80.11.74.146:2222
http://74.14.5.212:2222
http://74.14.5.178:2222
http://72.252.157.62:995
http://72.252.157.250:990
http://72.252.157.245:990
http://72.252.157.233:995
http://72.252.157.212:990
http://72.252.157.106:995
http://70.51.137.22:2222
http://70.51.137.209:2222
http://70.51.137.204:2222
http://70.51.137.15:2222
http://67.69.166.80:2222
http://67.69.166.36:2222
http://67.69.166.245:2222
http://63.143.92.90:995
http://63.143.92.26:995
http://63.143.92.221:995
http://63.143.92.15:995
http://46.100.25.55:61202
http://46.100.25.153:61202
http://46.100.25.145:61202
http://45.46.53.7:2222
http://45.46.53.77:2222
http://45.46.53.221:2222
http://40.134.246.56:995
http://40.134.246.216:995
http://40.134.246.149:995
http://39.57.56.30:995
http://39.57.56.206:995
http://39.57.56.201:995
http://39.53.124.45:995
http://39.53.124.148:995
http://39.53.124.135:995
http://39.52.59.37:995
http://39.52.59.234:995
http://39.52.59.184:995
http://39.52.221.84:995
http://39.52.221.39:995
http://39.52.221.205:995
http://39.49.41.55:995
http://39.49.41.28:995
http://39.49.41.181:995
http://39.44.60.65:995
http://39.44.60.51:995
http://39.44.60.187:995
http://39.41.16.33:995
http://39.41.16.31:995
http://39.41.16.109:995
http://38.70.253.70:2222
http://38.70.253.56:2222
http://38.70.253.213:2222
http://38.70.253.154:2222
http://37.208.131.96:50010
http://37.208.131.249:50010
http://37.208.131.230:50010
http://37.208.131.224:50010
http://37.186.58.41:995
http://37.186.58.18:995
http://37.186.58.153:995
http://32.221.224.83:995
http://32.221.224.7:995
http://32.221.224.201:995
http://32.221.224.102:995
http://24.178.196.74:2222
http://24.178.196.228:2222
http://24.178.196.227:2222
http://24.178.196.177:2222
http://24.158.23.45:995
http://24.158.23.219:995
http://24.158.23.204:995
http://24.158.23.104:995
http://217.165.157.245:995
http://217.165.157.243:995
http://217.165.157.121:995
http://217.128.122.182:2222
http://217.128.122.112:2222
http://217.128.122.108:2222
http://201.172.23.70:2222
http://201.172.23.6:2222
http://201.172.23.174:2222
http://201.172.23.102:2222
http://196.203.37.228:80
http://196.203.37.212:80
http://196.203.37.190:80
http://196.203.37.106:80
http://186.90.153.39:2222
http://186.90.153.237:2222
http://186.90.153.182:2222
http://186.90.153.116:2222
http://182.191.92.39:995
http://182.191.92.238:995
http://182.191.92.221:995
http://177.94.65.55:32101
http://177.94.65.158:32101
http://177.94.65.146:32101
http://177.189.180.240:32101
http://177.189.180.207:32101
http://177.189.180.135:32101
http://176.45.218.186:995
http://176.45.218.13:995
http://176.45.218.125:995
http://174.80.15.53:2083
http://174.80.15.34:2083
http://174.80.15.165:2083
http://173.21.10.75:2222
http://173.21.10.31:2222
http://173.21.10.116:2222
http://172.115.177.254:2222
https://190.252.242.69:443
http://172.115.177.201:2222
http://172.115.177.127:2222
http://172.115.177.112:2222
http://121.7.223.219:2222
http://121.7.223.20:2222
http://121.7.223.143:2222
http://120.150.218.51:995
http://120.150.218.202:995
http://120.150.218.139:995
http://120.150.218.119:995
http://111.125.245.20:995
http://111.125.245.205:995
http://111.125.245.203:995
http://108.56.213.36:995
http://108.56.213.172:995
http://108.56.213.142:995
http://106.51.48.3:50001
http://106.51.48.248:50001
http://106.51.48.139:50001
http://104.34.212.96:32103
http://104.34.212.33:32103
http://104.34.212.152:32103
http://103.133.11.48:995
http://103.133.11.241:995
http://103.133.11.181:995
http://103.116.178.228:995
http://103.116.178.196:995
http://103.116.178.195:995
http://101.50.67.85:995
http://101.50.67.74:995
http://101.50.67.72:995
http://100.38.242.94:995
http://100.38.242.193:995
http://100.38.242.149:995
http://100.38.242.134:995
http://1.161.79.219:995
http://1.161.79.166:995
http://1.161.79.139:995
https://182.52.159.207
https://89.101.97.204
https://86.97.10.196
https://108.56.213.172:995
https://103.133.11.241:995
https://86.97.246.133:2222
https://39.41.16.109:995

The information presented here describes computer security research for educational purposes only and the convenience of Trellix customers. Trellix conducts research in accordance with its Vulnerability Reasonable Disclosure Policy | Trellix. Any attempt to recreate part or all of the activities described is solely at the user’s risk, and neither Trellix nor its affiliates will bear any responsibility or liability.
